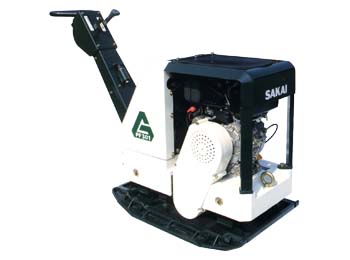

PF301


PF301
PF120-PF150 Specifications
Features

  • Newly designed body frame promises smooth and steady compaction for big productivity.
  • Hydrostatic operation lever assures easy and quick forward-reverse movements.
  • New protection frame protects machine from any damages at job site or transportation.
  • Special rubber isolators assures easy control and comfortable operation.
  • Fully sealed belt-cover protects belt from harmful gravels and assures long sevice life.

*Specifications are subject to change without notice.
MODEL PF301
WEIGHTS kg(lbs) 365(805)

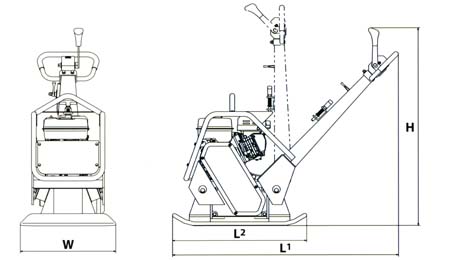

DIMENSIONS mm(in)
Overall length L1 1,615(64)
Overall width W 445(17.5)
Overall height H 1,010(40)
Vibrating plate L2 860(34)
Vibrating plate W 445(17.5)
PERFORMANCE
Frequency Hz(vpm) 70(4,200)
Centrifugal force kN(kgf)lbs 46.1(4,700)10,360
Speed m/min(ft/min) 0-23(0-75)
ENGINE
Model YANMAR L70V6-VSA1
Type Diesel, 4 cycle
Max. output kW(PS)/min-1 6.6(9.0)/3,600
Starting System Electric Starter
Operating System Hydrostatic
Fuel tank capacity liter(gal) 5.4(1.4)
