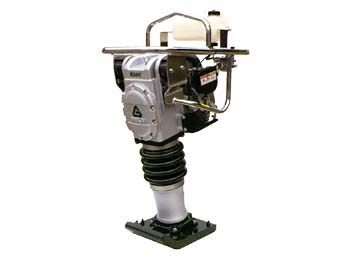

RS65MH


RS65
Specifications
Features
  • Compaction stroke is increased by 30% from earlier models.
  • Tapered front corner shoe are standard equipment for protection of the side edge of pavement.
  • One-touch shut-down lever with fuel shut-off function for easy and safe transportation (Patented).
  • SAKAI's original large size rubber isolators assures easy control and comfortable operation.
  • Multi air cleaner system promises long interval of engine maintenance.

*Specifications are subject to change without notice.
*Max. Output shows Maximum output of engine manufacturer. It does not always mean max. output under operation of the machine.
MODEL RS65MH
WEIGHTS kg(lbs) 72(160)
DIMENSIONS mm(in)
Overall length L1 740(29)
Overall width W1 395(15.5)
Overall height H 1,040(41)
Ramming Shoe W2×L2 280×340(11×13.5)
PERFORMANCE
Ramming Stroke mm(in) 50-70(2-3)
Frequency Hz(vpm) 10.7-11.3(640-680)
Speed m/min(ft/min) 16-20(52-66)
ENGINE
Model HONDA GX100KRF2
Type Air-cooled, 4-cycle
Max. output kW(PS)/min-1 2.2(2.9)/3,600
Starting System Recoil Starter
Fuel tank capacity liter(gal) 2.2(0.6)
