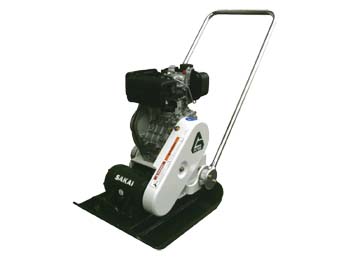

PC100

Features

Extremely simple construction provides toughness never susceptible to accidents, leading to low running cost.
Speedy and continuous compacting work the machine offers reduces working hours and greatly enhances work efficiency.
Easy to handle. With low center of gravity, the machine is also suitable to compact slopes.
The carrier for short-distance transport(Optional specification) is easy to mount and dismount.

MODEL PC100

WEIGHTS kg(lbs) 105(230)

DIMENSIONS mm(in)

Overall length A 1,010(40")

Overall height B 895(35")

Overall width C 450(17.5")

Vibrating plate (length × width) D × C 610 × 450(24" × 17.5")

PERFORMANCE

Frequency Hz(vpm) 98(5,900)

Centrifugal force kg(lbs) 1,700(3,750)

Max. speed km/h(mph) 1.5(0.9)

ENGINE Diesel engine

Model Yanmar L40DV

Type Air-cooled, 4-cycle

Max. output kW(HP) 3.1(4.1)

Max. speed min^-1 3,600

Fuel tank capacity liter(gal) 2.5(0.7)

MODEL		PC100
WEIGHTS	kg(lbs)	105(230)
DIMENSIONS	mm(in)
Overall length	A	1,010(40")
Overall height	B	895(35")
Overall width	C	450(17.5")
Vibrating plate (length × width)	D × C	610 × 450(24" × 17.5")
PERFORMANCE
Frequency	Hz(vpm)	98(5,900)
Centrifugal force	kg(lbs)	1,700(3,750)
Max. speed	km/h(mph)	1.5(0.9)
ENGINE		Diesel engine
Model		Yanmar L40DV
Type		Air-cooled, 4-cycle
Max. output	kW(HP)	3.1(4.1)
Max. speed	min^-1	3,600
Fuel tank capacity	liter(gal)	2.5(0.7)
